Siltframe · Robustness audit · SAMPLE

Failure map: SegFormer-B0 on off-road terrain

Sample report. Prepared on public RELLIS-3D data to show the format of a customer audit.

1. Summary

The model is solid in clear conditions (38.1 mIoU, 87 drivable-surface IoU) but has one critical weakness and two serious ones. Night is critical: it removes most of the signal the model relies on to separate terrain types, and drivable-surface detection collapses. Dust and lens contamination are serious: distant structure (trees, vehicles, obstacles) disappears first. Fog and motion blur cost less, but thin classes (fences, barriers) suffer in all of them.

2. Degradation by condition

Condition	mIoU	vs clean	Drivable IoU	Sev 1 / 2 / 3
Clear (reference)	38.1	—	87	—
Night / low light held-out	13.8	−64%	36	20 / 14 / 8
Dust Siltframe	21.4	−44%	74	25 / 22 / 17
Mud & water on lens held-out	21.6	−43%	76	29 / 21 / 14
Motion blur held-out	26.3	−31%	79	31 / 26 / 22
Rain on lens Siltframe	28.1	−26%	74	36 / 31 / 18
Fog held-out	29.3	−23%	81	32 / 30 / 26

“held-out” = an independent corruption generator (ImageNet-C or a literature low-light model) that is never used to create training data. Those numbers are the conservative ones.

3. Which classes break

IoU per class, averaged over severities. Darker cells = larger loss relative to clear weather. Classes shown are those relevant to driving with a clear-weather IoU of at least 15.

Class	Clear	Night	Dust	Lens mud	Fog	Lens rain	Blur
grass	86	29	76	78	80	74	78
concrete	79	12	26	27	65	59	64
puddle	70	35	50	37	58	59	39
mud	36	4	16	13	19	24	17
tree	76	31	32	46	57	59	63
bush	66	32	53	42	58	55	35
person	84	48	73	70	69	57	61
barrier	25	2	7	10	19	7	19
rubble	28	0	0	1	5	16	5

4. Failure gallery

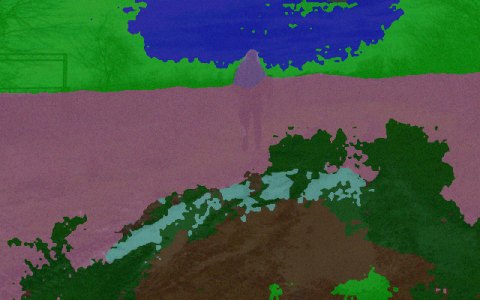

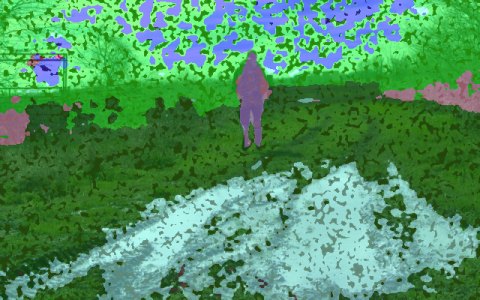

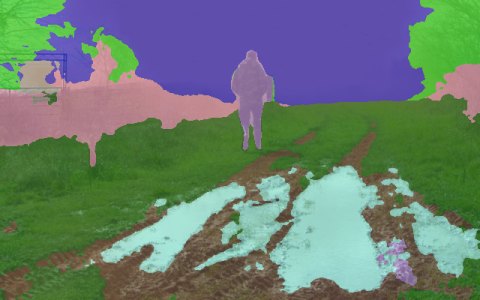

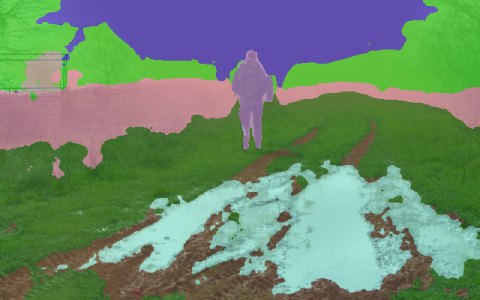

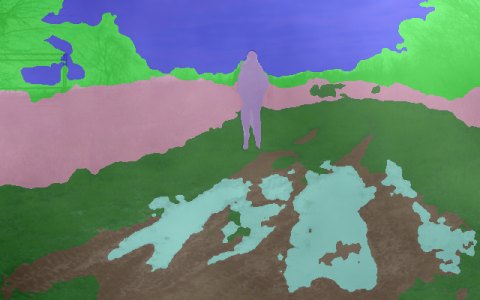

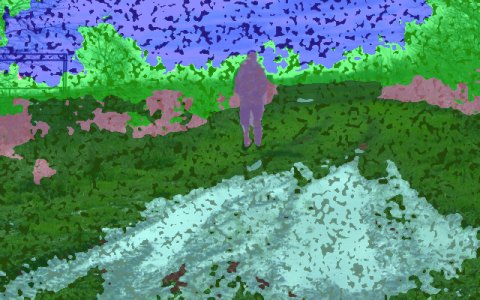

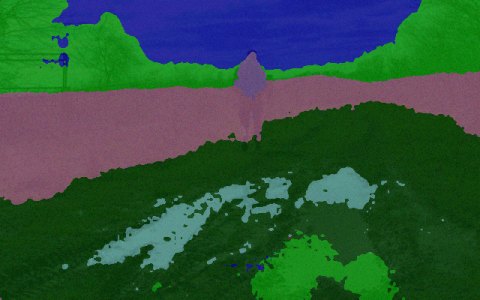

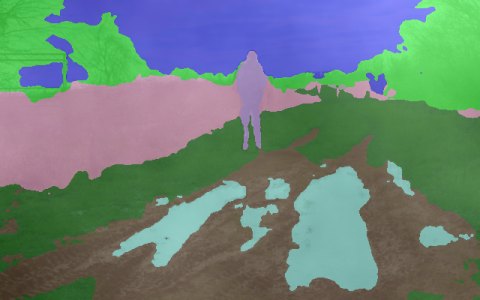

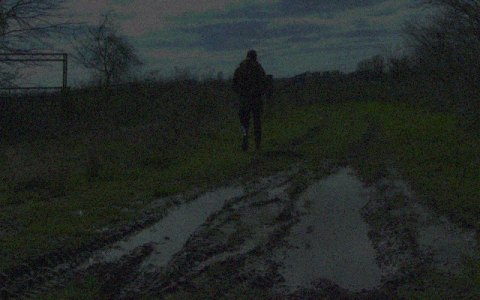

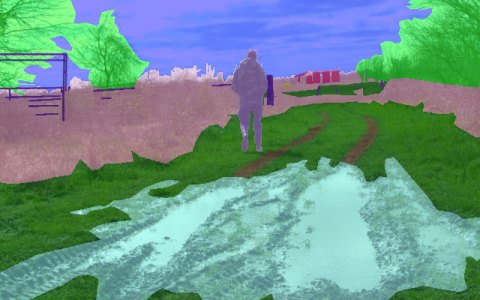

One real test frame, degraded four ways. Colours follow the RELLIS-3D ontology; ground truth for reference:

5. What a hard-case fine-tune recovers

Fine-tuned from the baseline with on-the-fly Siltframe degradations (50 % of samples), compared with an identical fine-tune on clean data. Mean mIoU over severities.

Condition	Control	+ hard cases	Δ
Night / low light	12.9	18.3	+5.4
Dust	21.1	28.4	+7.3
Mud & water on lens	22.1	26.0	+3.9
Fog	29.2	32.7	+3.5
Rain on lens	28.3	32.2	+3.9
Motion blur	26.4	26.6	+0.3

At night the largest per-class gain is puddle (+17.5 IoU); mud does not improve (-1.9). Clean-weather mIoU is unchanged within one point.

6. Recommendations, in order

1. Treat night as a separate operating mode. Even after fine-tuning, night stays far below clear weather. Add real low-light captures to validation, and consider exposure/illumination-aware inputs or a thermal channel before relying on RGB segmentation at night.
2. Add dust and lens-contamination hard cases to training. These give the largest, most reliable gains on held-out tests and don’t cost clean accuracy.
3. Watch the mud class separately. It doesn’t improve with synthetic night data and needs real labelled examples.
4. Add motion blur to the degradation set. The current fine-tune doesn’t target it and recovers almost nothing there.
5. Keep a real adverse-weather validation set out of training and select checkpoints on it — synthetic-only validation overestimates gains by roughly 2×.

7. Method & limits

Baseline trained on 1,200 clear RELLIS-3D frames at 640×400. Degraded test sets: 300 real test frames × 6 conditions × 3 severities, rendered with fixed seeds. Metrics: mIoU over classes present in the test split; drivable surface = dirt, grass, asphalt, concrete. Fine-tune comparison: control arm with identical steps on clean data. Limits: degraded inputs are synthetic (RELLIS-3D has no real night or dust frames); a customer audit adds your own real adverse-condition frames as the final check.
